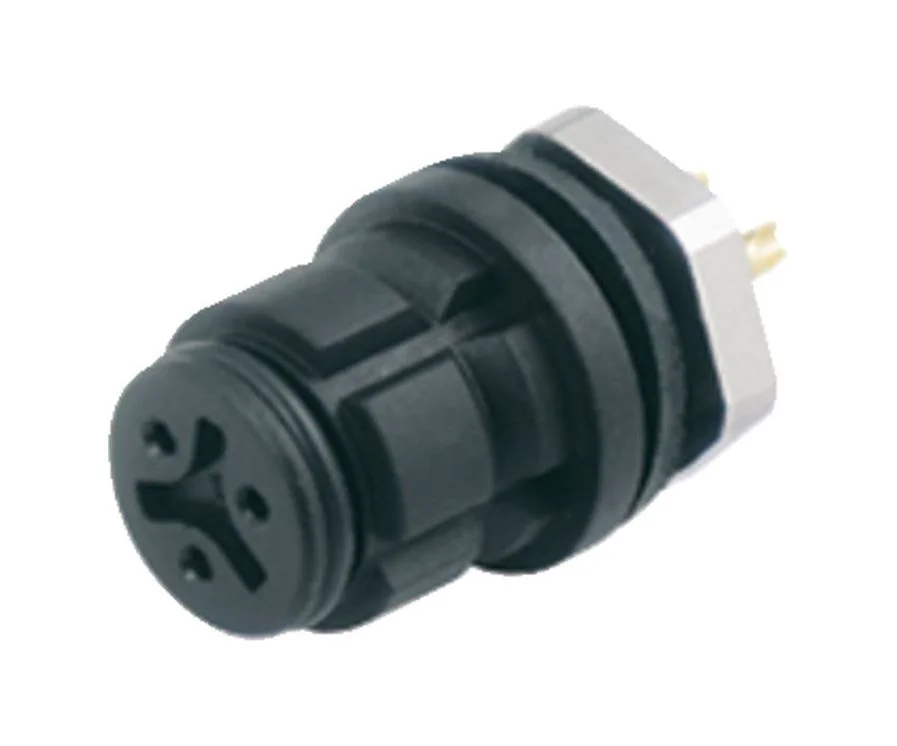

The image may differ from the original
5-pin snap-in flange socket from the Binder Series 620 for medical technology applications in accordance with IEC 60601-1. Solder connection, IP67 protection rating, M8x0.75 thread, UL 2238 certified. Biocompatible and sterilisable.
Out of stock
€ 5,86
| Series | 620 Series |
|---|---|
| Lock | Snap-in |
| Shielding | unshielded |
| Numberpole | 3–8, 5 |
| Design | flange socket |
| Connection type | solder |
| IP rating | IP67 |
| Rated voltage | 63–125 V |
| Rated current | 1–3 A |
| Temperature range | -25 °C / +85 °C |
The Binder 99 9216 00 05 snap-in flange socket (Series 620) is a 5-pin medical connector for front mounting. The compact M8x0.75 housing, in an unshielded version, is ideal for medical devices and diagnostic systems where space is limited.
The connector meets the requirements of IEC 60601-1 for medical electrical equipment and is certified to UL 2238. The biocompatible materials allow direct patient contact, whilst its sterilisability enables use in operating theatres and treatment rooms. The snap-in locking mechanism ensures quick assembly and a secure mechanical connection.
With an IP67 protection rating, the flange socket offers reliable protection against dust and temporary submersion. The solder terminals ensure secure electrical connections during PCB assembly.
Typical applications: patient monitoring, infusion pumps, ECG devices, mobile diagnostic systems. The connector combines medical approvals with a compact design for demanding healthcare applications.
