Direct radiating indoor panel SISO antenna for 617–3800 MHz with 4.3-10 female connector. PIM rating –153 dBc at 2×20 W, 50 Ohm. For LTE and 5G indoor installations.
| HF connector type | 4.3-10 |
|---|---|
| Country of origin | China |
| Impedance | 50 ohms |
| Frequency range | 617–3800 MHz |
| PIM Rating | -153 dBc |

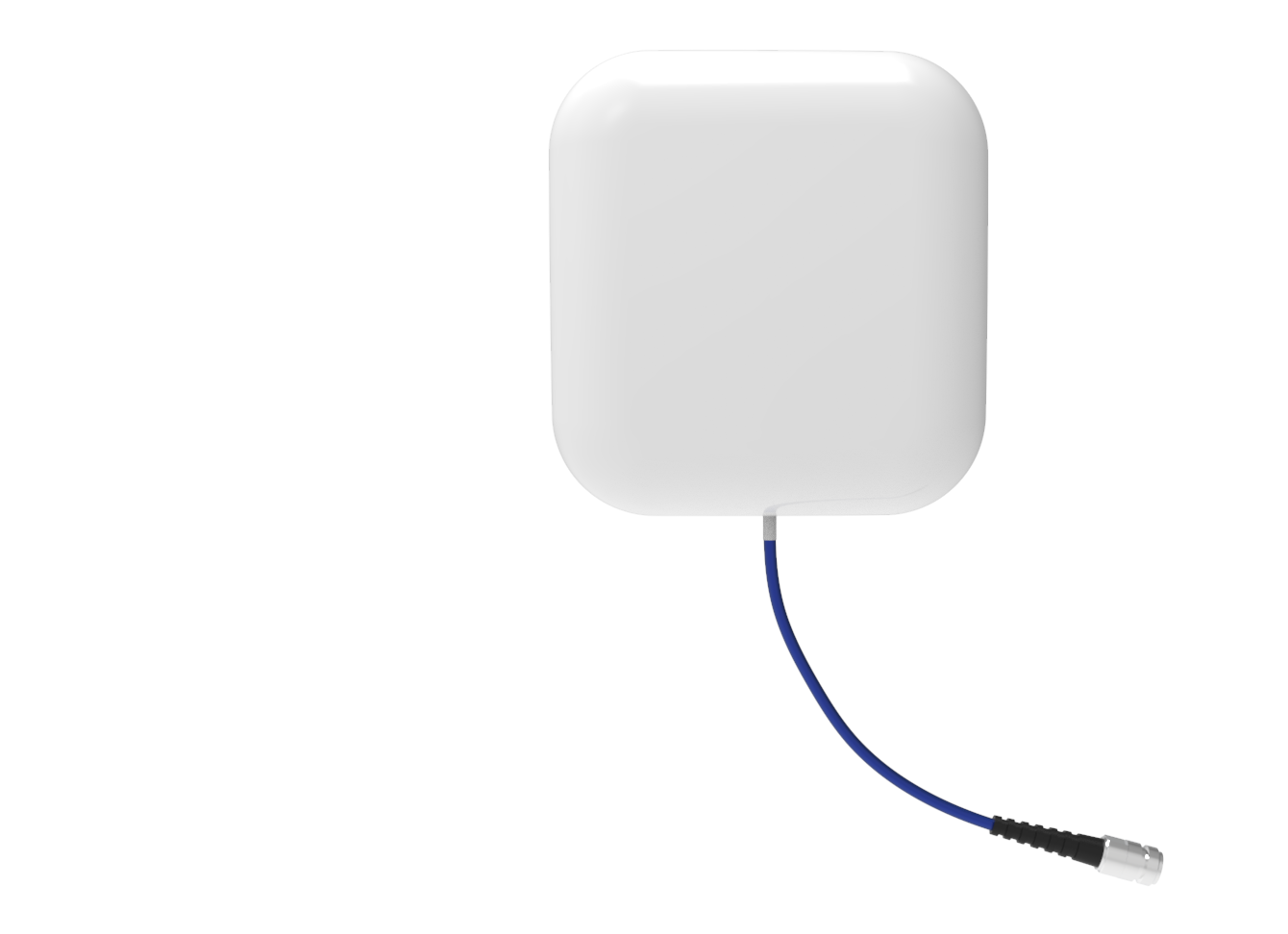

The indoor panel antenna I-ATP5-43-617/3800 is a directional SISO antenna for the frequency range 617 to 3800 MHz with a 4.3-10 female connector and 50 Ohm system impedance.
The PIM rating of –153 dBc at 2×20 W ensures high signal purity and is suitable for operation in multiband DAS systems with simultaneous use of various LTE and 5G bands. The 4.3-10 connector complies with the current standard for modern mobile network infrastructure.
Areas of application include DAS installations in office buildings, shopping centres, stadiums, and industrial facilities, where directed indoor coverage is required across the entire LTE/5G frequency spectrum up to 3800 MHz.
